C002 30KN Soil Medium Pressure Triaxial Testing Machine

Name: C002 30KN Soil Medium Pressure Triaxial Testing Machine
Brand: zealchon
Price: 8200 USD

Wholesale C002 30KN Soil Medium Pressure Triaxial Testing Machine from china suppliers

power : 0.75kW

MOQ : 1set

Payment Terms : L/C, D/P, T/T

Certification : CE ISO

Place of Origin : China

Delivery Time : 7days

Price : $8200

Strain rate : 0.0024~4.5mm/min continuously viable

Brand Name : zealchon

voltage : 220V±10V 50Hz

Supply Ability : 100sets/month

The axial maximum load : 10kN、20kN

Packaging Details : wooden box

Model Number : C002

Axial deformation : 0-10mm±0.01mm

Contact Now

Highlights at a glance

High Accuracy: Ensures precise soil test results for reliable analysis.

IP55 Protection: Dustproof and splashproof design for durability in various environments.

100W Power: Reliable performance for continuous operation.

1-Year Warranty: Peace of mind with extended coverage for peace of mind.

30kN Capacity: Handles large samples for comprehensive soil testing.

00:00/00:30

C002 30KN Soil Medium Pressure Triaxial Testing Machine

About this supplier

Xi an Zealchon Electronic Technology Co ., Ltd With more than 15 years of civil engineering background, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. We manufacture and supply testing instruments for civil engineering, geological survey, water conservancy and hydropower, roads and bridges, highways, railways and airports. We specialize in the production and sales of geotechnical testing instruments, asphalt and asphalt mixture testing instruments, cement and concrete testing instruments. Zealchon is engaged in manufacturing and supplying qualitative array of research and laboratory testing equipment. Zealchen specialize in civil engineering research and experimental apparatus; another is the semiconductor laser research and development.Our range includes research lab instruments, soil testing instruments, bitumen testing instruments, and cement& concrete testing equipment.

Company overview

Trade show participation

Packaging & shipping specifications

client visiting

FAQs

How is the equipment compatible with soil samples of different sizes (such as soft soil and large particle gravel soil)?

Our pressure chamber adopts a modular and replaceable base design. If you want to make both 39.1mm standard fine-grained soil and 101mm coarse-grained soil on a single host, you only need to purchase the corresponding size of pressure chamber top base components (base, pressure head, split mold). The main controller and loading frame are completely interchangeable, greatly saving procurement costs.

Triaxial testing often lasts for several days or even weeks. How can the system ensure its sealing performance under long-term operation?

Long term testing (especially CD testing) requires almost strict sealing requirements for the system. We have made a special design to address this point: Low friction and low leakage shaft seal: The axial loading rod passes through the top cover of the pressure chamber and uses a special combination of low friction and low leakage sealing rings, which not only ensures minimal friction when the loading rod moves up and down (without affecting low stress testing), but also ensures that the

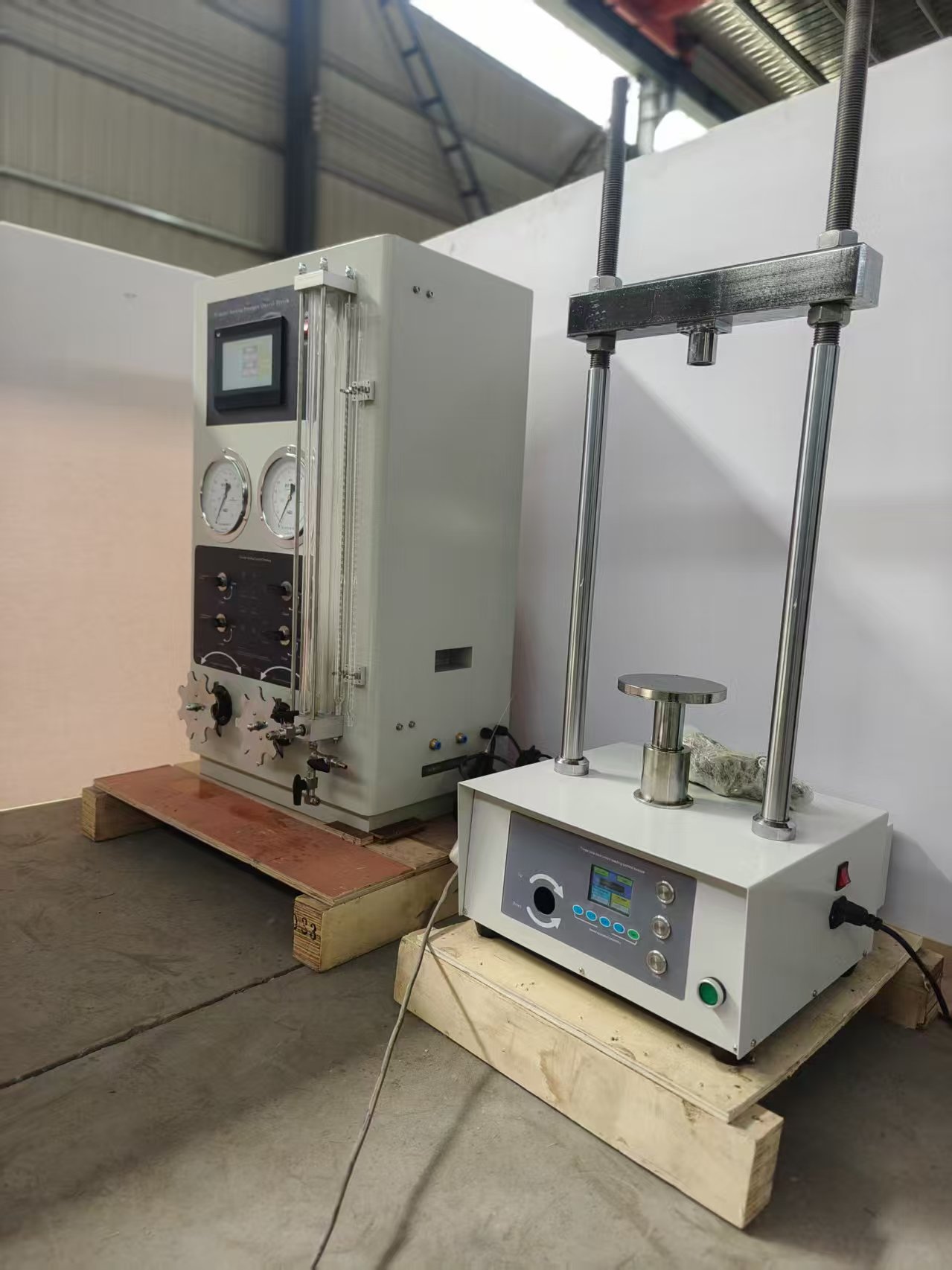

C002 30KN Soil Medium Pressure Triaxial Testing Machine Images
