Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment

Xian Zealchon Electronic Technology Co., Ltd.
Contact Now

Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment

Brand Name : Zealchon

Model Number : C001

Certification : ISO

Place of Origin : China

MOQ : 1

Price : $18000

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 100sets/month

Delivery Time : 7days

Packaging Details : wooden box

power : 0.75kW

axial compressive force : 0-10KN 0-30KN 0-60KN 0-100KNoptional

axial deformation : 0-30mm±0.01mm

rate of shear : 0.001mm-10mm/min continuously viable

specimen size : ¢39.1mm ¢61.8mm ¢101mmConfining pressure cylinder Optional

Contact Now

Product Description
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Specification
C001 Fully Automatic Triaxial Testing System Apparatus Electronic with 39.1 61.8 soil triaxial compression test
Noted: The ASTM and BS standards model can be tailor made.

Description

The full automatic series triaxial testing equipment including the DAQ system compared with the automatic model.it kind of advanced soil mechanics testing equipment for general geotechnical laboratory and teaching use.

Main Features
* DAQ system available, free communication with computer and integration controller
* Multifunctional, can do (UU, CU, CD shear test) with standard configurations, if equipped with necessary accessories, can do K0 consolidation test, static pressure coefficient test, multiple stress path triaxial test, stretch test, resilience modulus test, CBR test; if equipped with consolidation modules, it also can do grating loading / continuous loading consolidation test;

if equipped with vibration module, it can perform full automatic vibration triaxial test.
* Fully automatic, high efficiency and labor saving
* Test process and data management can be reached through computer



item
value
Warranty
1 year
Customized support
OEM
Place of Origin
China
Shaanxi
Brand Name
Zealchon
Model Number
C001
Power
Electronic
Specimen area
39.1 x 80mm, 61.8 x 125mm, 101 x 200mm
Axial displacement
0-30mm
Confining pressure
0-2MPa
Working table travel
Max. 50mm
Product name
soil triaxial test apparatus
Power
Electronic
Standard
BS.EN.ASTM
Certification
ISO
Packing & Delivery
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Company Profile
00:00
00:28
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
Lab display
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment

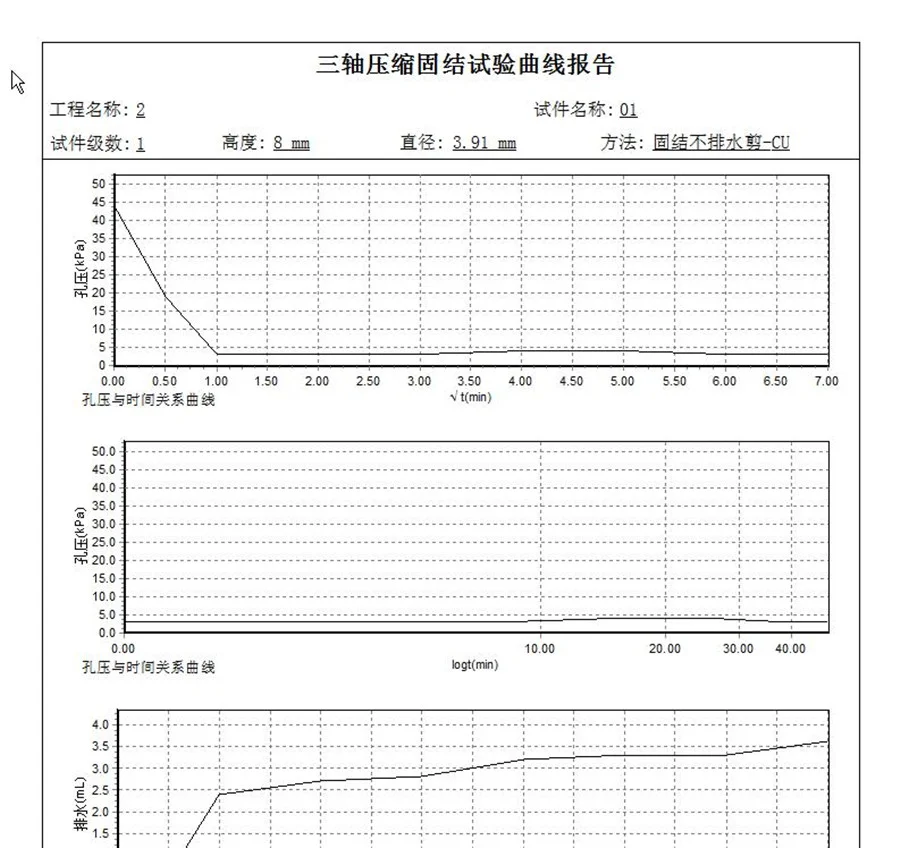

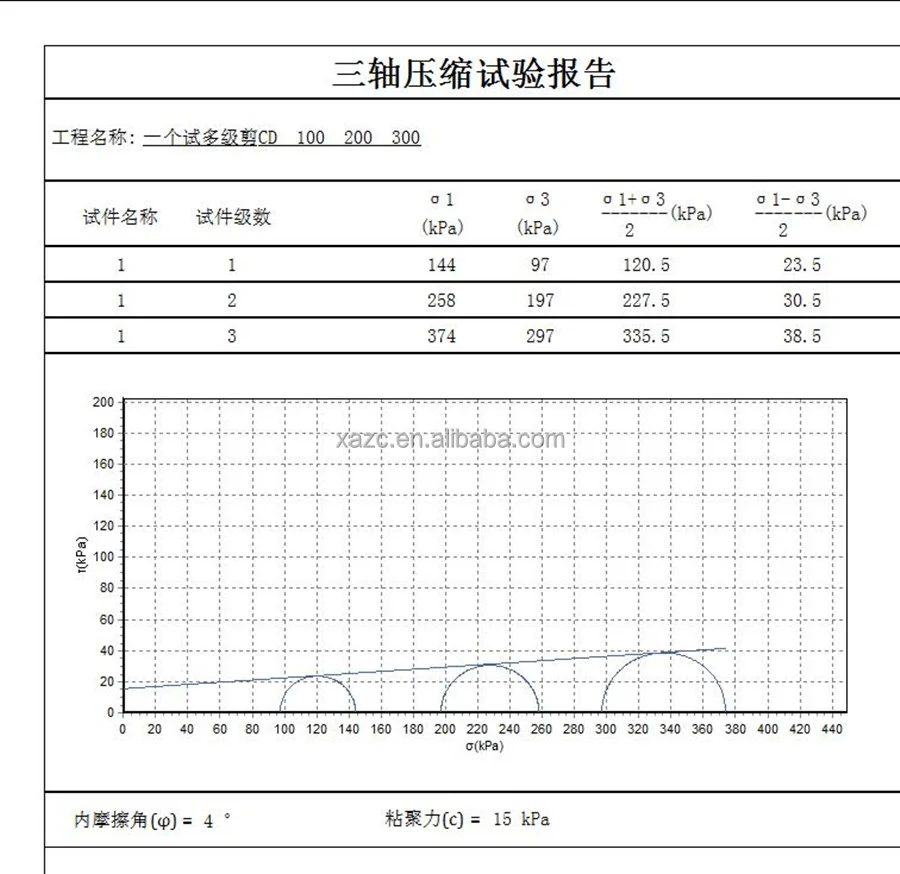

Test report
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
Soil Triaxial Strength Test Unconsolidated Undrained Shear Test equipment
